CR17505 3V 3000mAh Battery

CR17505 3V 3000mAh Battery Applied In Smart Meters Industrial Control And Security Systems 0

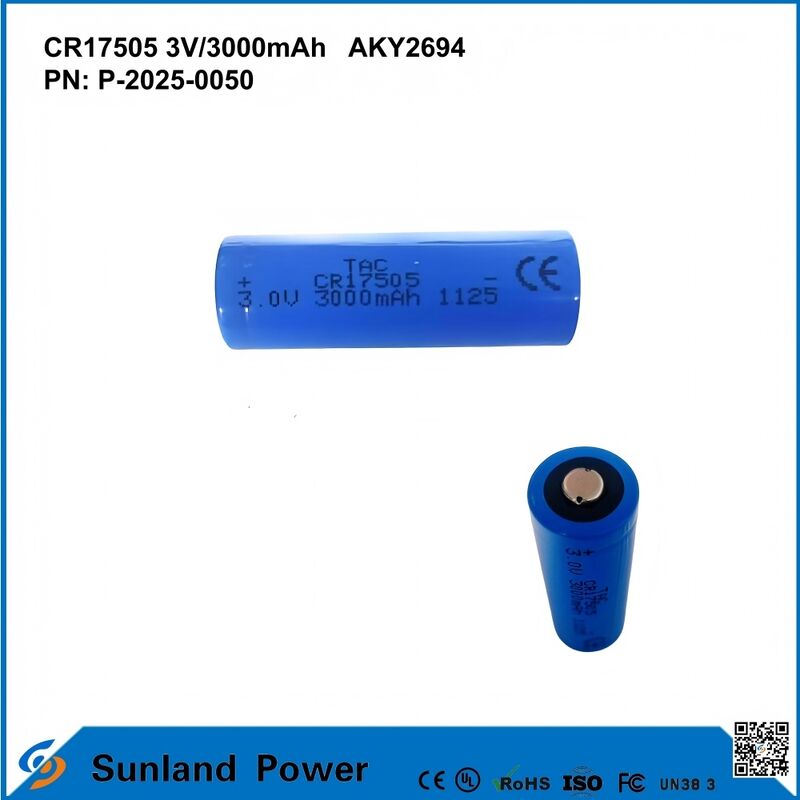

CR17505 3V 3000mAh Lithium Manganese Dioxide Battery

Product Overview

The CR17505 is a high-performance lithium-manganese dioxide (Li-MnO₂) primary cylindrical battery, featuring a fully sealed stainless steel casing with dimensions of 17.0 mm in diameter and 50.5 mm in height. Known for its high energy density, wide operating temperature range, and ultra-long service life, this battery serves as an ideal power solution for applications in smart metering, industrial control, security systems, and more.

Core Technical Specifications

Basic Electrical Characteristics:
  • Nominal Voltage: 3.0V (Open Circuit Voltage: 3.00-3.40V)
  • Rated Capacity: 2800-3000mAh (at 5mA discharge to 2.0V)
  • Maximum Continuous Discharge Current: 1500-2000mA
  • Maximum Pulse Current: 3000-3500mA
  • Cut-off Voltage: 2.0V
Physical Characteristics:
  • Dimensions: Φ17.0 × 50.5mm
  • Approximate Weight: 24.8-30g
  • Operating Temperature Range: -40℃ to +85℃
  • Annual Self-Discharge Rate: ≤1%
  • Shelf Life: Over 10 years

Key Features & Advantages

High Energy Density: With a specific energy of up to 330Wh/kg or 750Wh/L, it provides extended runtime in a compact form factor. Over 90% of its capacity is delivered on a stable voltage plateau.
Broad Temperature Performance: Capable of reliable operation in extreme temperatures from -40℃ to +85℃. It retains approximately 50% of its nominal capacity at -40℃, demonstrating excellent adaptability to both high and low temperatures.
Ultra-Long Life & Low Self-Discharge: Features an exceptionally low self-discharge rate of less than 1% per year and a shelf life exceeding 10 years at room temperature. It maintains about 80% of its initial capacity after 10 years of storage at 20℃.
Safety & Reliability: The fully sealed stainless steel casing ensures integrity through hermetic welding. Integrated safety features such as venting grooves and fuses provide protection against over-pressure and short circuits. The product is certified to international standards including UL, CE, and UN38.3.

Applications

Smart Metering Systems:
  • Smart electricity, water, gas, and heat meters
  • AMR for utility meters & CMOS circuit boards
  • Flow meters, gas and water quality detectors
Industrial Control & Security:
  • PLCs, CNC systems, machine tools, servos
  • Smoke detectors, burglar alarm systems
  • Medical devices, emergency lighting systems
Automotive Electronics & IoT:
  • Tire Pressure Monitoring Systems (TPMS)
  • Wireless sensor networks, remote monitoring
  • IoT devices, asset trackers
Defense & Military:
  • Aerospace, underwater sonar, navigation equipment
  • Military communication systems, security apparatus

Quality Certifications

The product is ISO9001 certified and holds international approvals including UL (File Numbers: MH45423, MH26236), CE, SGS, RoHS, and UN38.3, ensuring compliance with global market requirements.

Important Usage Notes

  1. Non-Rechargeable: The CR17505 is a primary (non-rechargeable) lithium battery. Charging is strictly prohibited​ as it may cause explosion or fire.
  2. Prevent Short Circuits: Avoid direct contact between the positive and negative terminals.
  3. Correct Installation: Install the battery according to the correct polarity as specified by the device.
  4. Avoid High Temperatures: Store at a maximum temperature of 30℃. Do not expose to heat or incinerate.
  5. Transportation Regulations: Transportation must comply with Dangerous Goods Safety Regulations.
With its high energy density, wide operating temperature range, ultra-long life, and reliable performance, the CR17505 battery is the preferred power solution for industrial-grade applications, providing durable and stable power support for various smart devices and remote monitoring systems.
