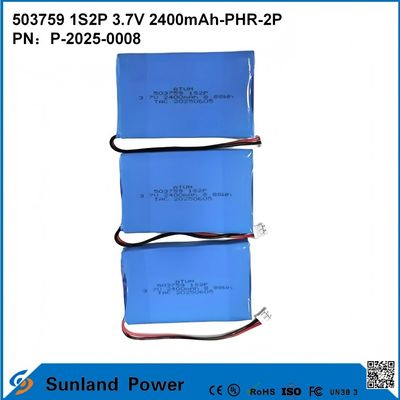

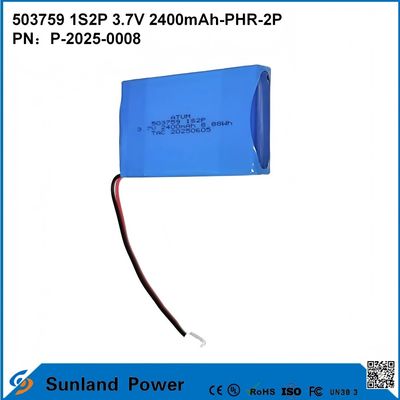

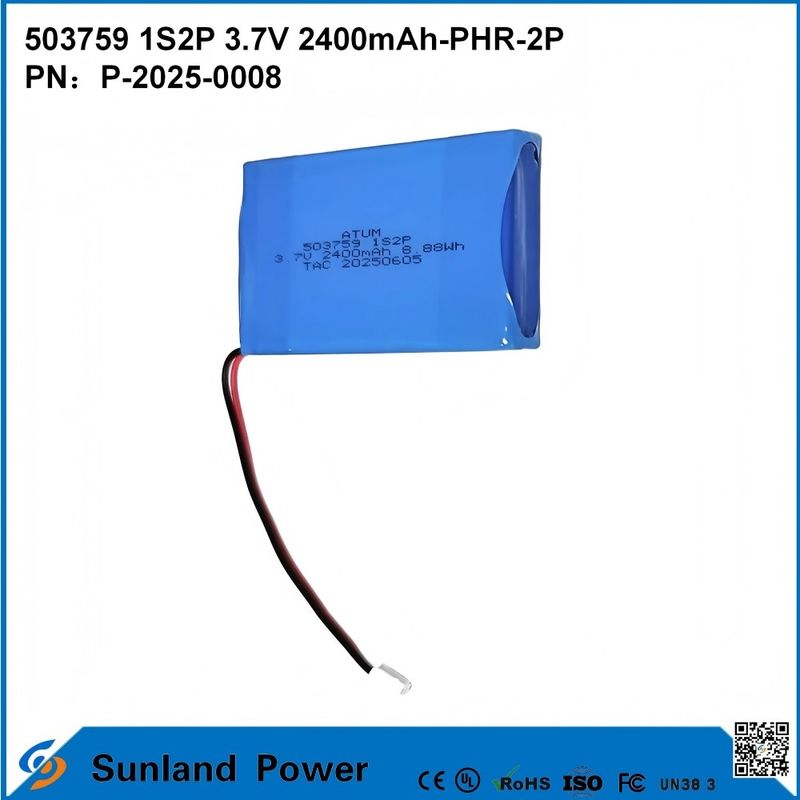

ICR503759 1S2P 3.7V 2400mAh-PHR-2P the he Ultimate Power Pack for Portable Electronics battery

افضل سعر اتصل

معلومات تفصيلية

منتوج وصف

Model and Specifications
Model Number	503759: Indicates the battery dimensions of 5.0mm × 37.5mm × 59.0mm.
Connection	1S2P: 1 cell in series, 2 cells in parallel.
Nominal Voltage	3.7V: The rated voltage of the battery.
Nominal Capacity	2400mAh: The rated capacity of the battery.
Polarity/Configuration	PHR-2P (Reverse):
Technical Parameters
Charging Voltage	Maximum charging voltage is 4.2V.
Discharge Cut-off Voltage	2.8V.
Discharge Current	Maximum continuous discharge current is 1C.
Cycle Life	Typically ≥500 cycles.
Operating Temperature	Charging: 0~45℃; Discharging: -20~60℃.
Applications
Smart Devices	Suitable for smartwatches, Bluetooth headphones, GPS trackers, etc.
Portable Electronics	Such as portable speakers, electronic scales, dashcams, etc.
Medical Devices	Suitable for some small medical devices.
Toys and Models	Such as RC models, racing cars, etc.
Features
High Energy Density	Provides high energy output.
Slim Design	Suitable for space-limited devices.
Safety	Typically equipped with a protection board to prevent overcharging, over-discharging, and short circuits.
